Non Standby power supply Ferroresonant Pole Mount from China manufacturer

Non Standby power supply Ferroresonant Pole Mount

Payment Terms:	T/T
Place of Origin:	Taiwan


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: PSP-xxW-xx-x

Pole Mount: Ferroresonant

UL Listed: CE Certified

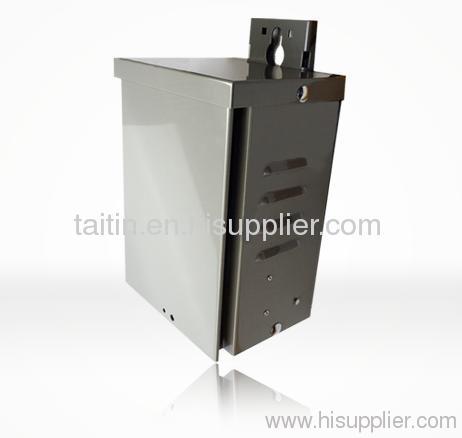

CATV Outdoor Ferroresonant Quasi-Square Wave Power Supply - Pole Mount

Description

The non-standby power supplies are available in both strand and pole-mount versions and are manufactured in Taiwan. Each unit is designed in a durable aluminum housing with a high quality ferroresonant transformer to provide conditioned power to amplifiers in CATV and broadband distribution systems.

The ferroresonant transformer provides line conditioning, voltage regulation, and surge and short circuit protection. The transformer is CE and UL certified and the power supply is available in several output ampere values.

Features

Suitable for Use in Areas Where Standby Reserve Power is Not aRequirement.
60 V AC Quasi-square Wave Reduces an Amplifier's Ripple Rating andImproves Power Transmission Distance.
Possesses an Auto Stability Function and Accepts Input Variation Range in ±15%. The Output Regulation is at ±2%.
During a Short, the Ferroresonant Transformer Folds Back Limited @150% of the Output Rating. ThisPrevents the Transformer from Being Damaged.
During an Overload, the Output Voltage Will Shut Down to Preventthe Transformer from Being Damaged
An Auto-Reset Function is Built-In for Instances When There is aShort or Overload.
Built-In Delayed Circuit to Protect the Device from any InputSurges and Minimize the Potential Impact of a Power Failure.
Built-In Surge Protection Circuit that Shunts High Voltage Spikeson the Output to the Ground.
LED Indicator Light During Normal Operation.
Ideal for Pole Mounting
Additional Features Include an External Lock and an Internal PowerSwitch

Part Numbers

PSP-660W-x-x: Power Supply Pole Mount: output 6 A/ 60 V

PSP-960W-x-x: Power Supply Pole Mount: output 9 A/ 60 V

PSP-1260W-x-x: Power Supply Pole Mount: output 12 A/ 60 V

PSP-1560W-x-x: Power Supply Pole Mount: output 15 A/ 60 V

PSP-1569W-x-x: Power Supply Pole Mount: output 15 A/ 60 V or 10 A/ 90 V
